이전 글 에이어서 Compose 기초 사용 방법에 대해 알아보겠습니다.
1. Text
Text(text = "Hello Android")
가장 기본적인 Text 사용 방법입니다.
Text(
text = stringResource(id = R.string.dummy_short_text),
maxLines = 2,
overflow = TextOverflow.Ellipsis,
color= Color.White,
style = TextStyle(
textAlign = TextAlign.Start,
textDecoration = TextDecoration.combine(
listOf(
TextDecoration.Underline,
TextDecoration.LineThrough
)
)
),
letterSpacing = 5.sp,
fontWeight = FontWeight.ExtraBold,
fontSize = 22.sp,
fontFamily = FontFamily(Font(R.font.nanum_gothic_bold)),
lineHeight = 40.sp,
modifier = Modifier
.fillMaxWidth()
.background(Color.Black),
onTextLayout = {
Log.d("TAG", "${it.lineCount}")
}
)
각 종 매개변수 사용을 해 보았습니다.
이걸 일일이 다하기에는 너무 많고 사용해 보면 쉽게 알 수 있는 부분이라 대부분은 생략하겠습니다.
string에 정의된 문구를 사용하기 위해서는 stringResorce를 사용합니다.
overflow는 Text영역을 벗어났을 때 어떻게 표기할지를 결정합니다. Ellipsis를 하면 마지막에... 을 보여줍니다.
style은 Text의 각종 속성들을 TextStyle을 통해 지정합니다. 변수로 사용 가능 함으로 다른 곳에서 미리 지정을 해 두고 사용하시면 됩니다.

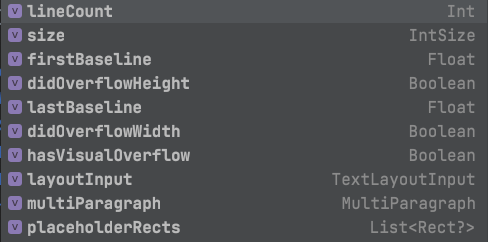

onTextLayout은 (TextResult) -> Unit으로 필요에 따라 아래의 값들을 사용할 수 있습니다.
2. Image
Image(
painter = painterResource(id = R.drawable.ic_launcher_background),
contentDescription = "description"
)
drawable에 있는 이미지는 위와 같이 사용할 수 있습니다.
Image(
imageVector = Icons.Default.Edit,
contentDescription = "description",
modifier = Modifier.size(100.dp)
)
imageVector의 경우 위와 같이 사용이 가능합니다.
크기 조정할 때에는 Modifier를 이용하면 됩니다.
Glide의 경우 준비가 필요합니다.
우선 상태 값을 저장할 Seald Class를 만들어 줍니다.
sealed class UiState {
object Loading : UiState()
data class Success(val data: Bitmap) : UiState()
}
@Composable
fun loadPicture(url: String): MutableState<UiState> {
val state : MutableState<UiState> = mutableStateOf(UiState.Loading)
Glide.with(LocalContext.current)
.asBitmap()
.load(url)
.into(object : CustomTarget<Bitmap>(){
override fun onResourceReady(resource: Bitmap, transition: Transition<in Bitmap>?) {
state.value = UiState.Success(resource)
}
override fun onLoadCleared(placeholder: Drawable?) {}
})
return state
}
그다음 상태 변화에 따라 로딩, 이미지를 저장을 하여 리턴하는 함수를 만들어줍니다.
val state = loadPicture(url = "https://raw.githubusercontent.com/PokeAPI/sprites/master/sprites/pokemon/back/133.png")
when (state.value) {
is UiState.Loading -> {
CircularProgressIndicator()
}
is UiState.Success -> {
Image(bitmap = (state.value as UiState.Success).data.asImageBitmap(), contentDescription = null)
}
}
마지막으로 상태 값에 따라 UI를 그려주면 끝입니다.
다른 방법은 skydoves님께서 만드신 라이브러리를 사용하는 것입니다.
https://github.com/skydoves/landscapist
GitHub - skydoves/landscapist: 🍂 Jetpack Compose image loading library that fetches and displays network images with Glide, C
🍂 Jetpack Compose image loading library that fetches and displays network images with Glide, Coil, and Fresco - GitHub - skydoves/landscapist: 🍂 Jetpack Compose image loading library that fetches a...
github.com
build.gradle에 아래의 내용을 추가해줍니다.
implementation "com.github.skydoves:landscapist-glide:1.5.2"
GlideImage(
imageModel = "https://user-images.githubusercontent.com/24237865/127760344-bb042fe8-23e1-4014-b208-b7b549d32086.png",
loading = { CircularProgressIndicator() },
failure = {
Text(text = "이미지 로드에 실패하였습니다.")
}
)
이렇게만 하면 간단하게 Glide를 사용할 수 있습니다.
다양한 사용법에 관해서는 링크를 참조해주세요
3. LazyColumn/LazyRow + Card
LazyColumn과 LazyRow는 ListView나 RecyclerView와 같이 여러 개의 아이템을 리스트로 보여줍니다.
우선 반복되는 UI의 아이템을 만들어줍니다.
@Composable
fun ListItem(name: String) {
Card(
modifier = Modifier
.fillMaxWidth()
.padding(10.dp),
elevation = 10.dp,
shape = RoundedCornerShape(12.dp)
) {
Row(
modifier = Modifier.padding(15.dp),
verticalAlignment = Alignment.CenterVertically
) {
Box(
modifier = Modifier
.clip(CircleShape)
.background(Color(0xFFFF7043))
.size(width = 50.dp, height = 50.dp)
)
Spacer(modifier = Modifier.padding(10.dp))
Text(text = name)
}
}
}
Card는 기존의 CardView와 거의 유사하며 CardView의 속성들을 대부분 넣을 수 있다고 생각하시면 됩니다.
Box에서 clip을 사용했는데 이것을 활용하면 원하는 모형으로 자르실 수 있습니다.
Spacer는 빈 공간을 만들어주는 역할을 합니다. 저는 padding을 썼지만 size를 사용하셔도 결과는 똑같습니다.
Compose는 margin속성이 없어서 padding 속성 주기 애매한 경우 사용하면 됩니다.
아이템을 준비하였으니 다음은 리스트 준비를 합니다.
LazyColumn / LazyRow의 경우 별도로 어뎁터는 필요 없습니다
val list = (1..10).map { "${it}번째 아이템" }
간단하게 위와 같이 준비를 하였습니다.

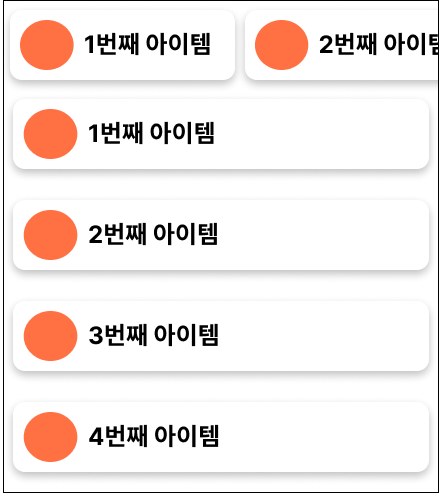

Column() {
LazyRow(content = {
items(list) {
ListItem(it)
}
})
LazyColumn(
content = {
items(list) { item ->
ListItem(item)
}
},
verticalArrangement = Arrangement.spacedBy(10.dp)
)
}
Column 또는 Row의 속성을 이용해서 간격을 벌릴 수도 있습니다.
만약 리스트에 내용이 변경되어야 한다고 하면 list를 MutableState로 만들어서 list의 값을 변경하면 됩니다.
